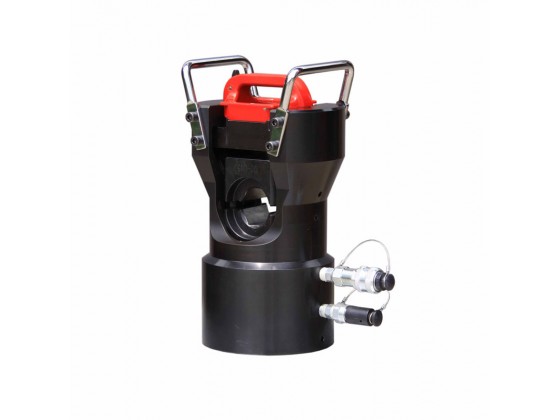

HPR100-GPEM-700G Portable Hydraulic Press Machine

This pressing machine is powerful enough to press most of the ferrules in our catalogue. It is an ideal tool for outdoor playground net making and wire rope processing.

Key Features:

• High Capacity: The maximum pressing force is up to 100 metric tonnes (700 bar rated pressure).

• Fast Operation: The pressing head is connected with an electric hydraulic pump with a double circuit, which shortens the retreat time of the cylinder piston.

• Ergonomic Design: The pressing head is delivered with quick coupling for easy connection and disconnection. The operator can ergonomically press ferrules using the remote controller with a 3-meter wire.

• Safety & Monitoring: Operators can monitor pressure through the pressure gauge during pressing, and the oil level is visible through the sight glass to ensure safety.

• Portable & Durable: The pump and pressing head are both about 30kgs, making it portable. The reservoir adopts integrated moulding production made of aluminium. This structure seals the oil very well and ensures good heat dissipation.

Application:
Widely used for pressing aluminum ferrules and wire ropes, perfect for manufacturing outdoor playground climbing nets, rope bridges, and other play structures.

Note: Dies can be provided for the ferrules.

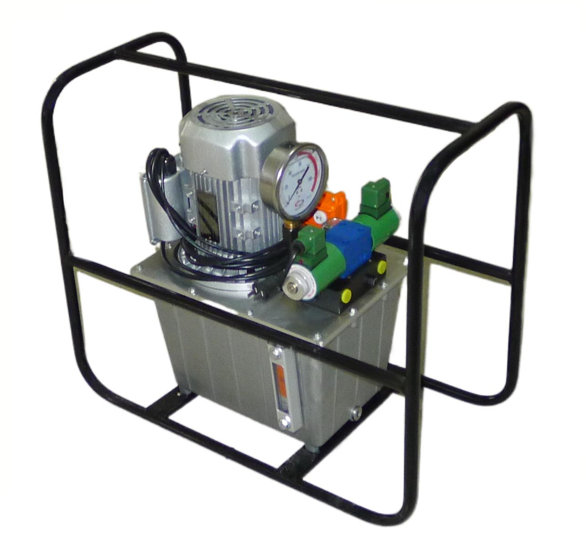

The pump recommended as below
